EMS Water Technology - Series IPC/P-FC

Prefabricated plants for the treatment of rainwater and first rainwater

Series IPC/P-FC
Monobloc parallelepiped rain water continuous treatment plants for large surfaces

Plants for large surfaces for the continuous treatment of first rain water with oil separator equipped with coalescence filters.
COMPLYING WITH UNI EN 858 regulations branded CE

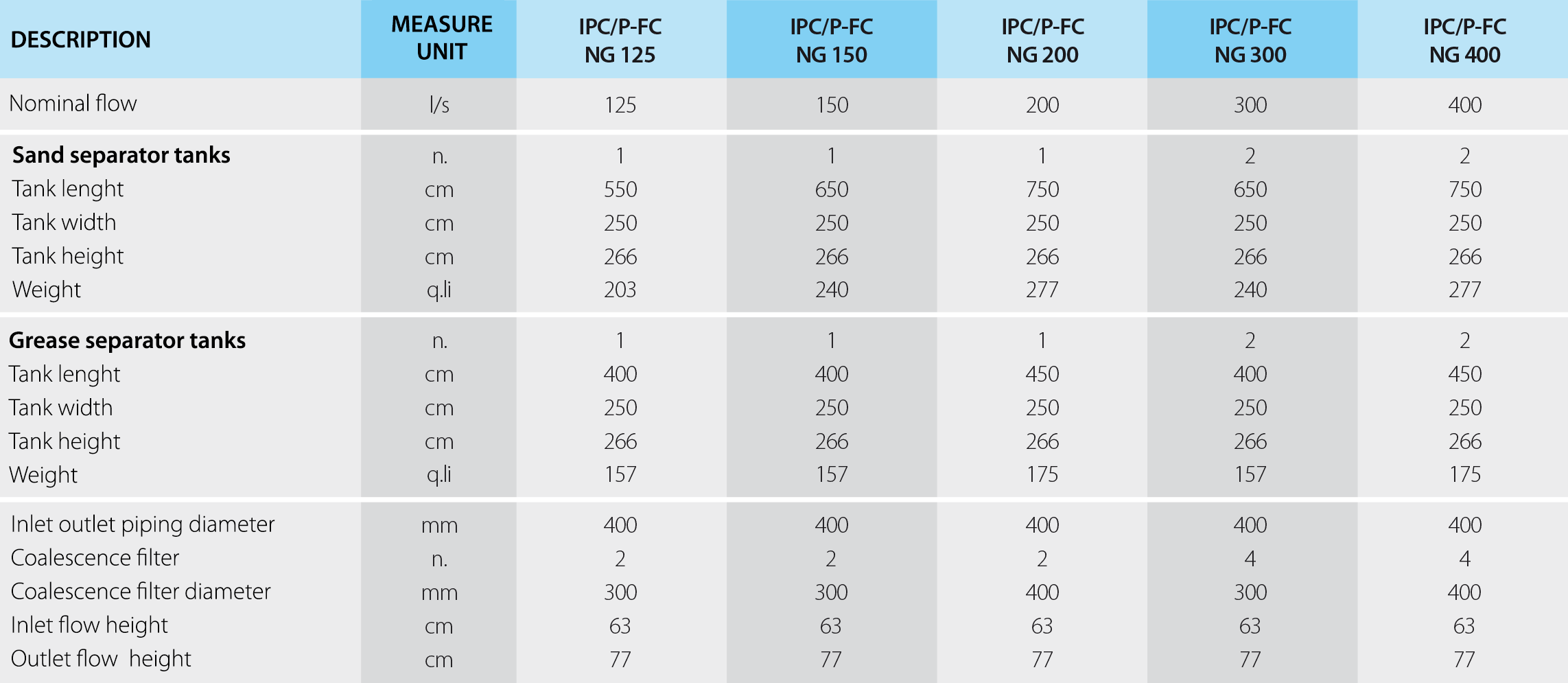

Technical specifications
Supply of continuous separation unit type EMS Water Technology series IPC/P-FC, dimensioned according to the S-II-I-P system of the UNI EN 858 regulation PART 1 and 2, class 1, branded CE, prefabricated monobloc parallelepiped made of highly resistant reinforced concrete , for the treatment of water coming from roads, service stations, car parks, junk yards, garages, divided into two units : sand separation and oil separation, complete with stainless steel defectors, coalescence filter, discharge device with floating shutter ,and cover slab equipped with manholes.
